Item specifics
  • Warning: No
  • Gender: Unisex
  • Age Range: Grownups
  • Material: Plastic
  • Plastic Type: PVC
  • Model Number: NHC-4WD
  • Type: 4WD Robot Smart Car
  • Theme: Robots
  • Scale: 4WD robot smart car chassis
  • Driver Type: 4WD
  • Free Shipping: Yes
  • 4 wheels: Yes
  • Age Range: 12-15 Years, Grownups
  • is_customized: Yes
Product Description

Free shipping 4WD robot smart car chassis kits with speed encoder for sale



Arduino 4WD robot smart car chassis kits Description:

 Our 4wd robot car chassis there are two, a transparent and a black. Buyers photographed, please leave a message to which color. If there is no message, random delivery Thank you!

Our Arduino 4WD robot smart car chassis kits has the following advantages:

1. A simple mechanical structure, very convenient to install.
2. By four deceleration DC motor turning flexible, good direction. The four-drive horsepower chronological. The Arduino robot 4WD smart car chassis large stability is very easy to extend.
3. Arduino robot 4WD smart car chassis Kits comes velocimetry code disc with OUR guns photoelectric quickly formed a tachometer system. Velocimetry, ranging form a closed-loop system.
4. Arduino robot 4WD smart car chassis Kits can equipped L293D four motor drive module, four tracking module, as well as the 51 seamless connection of the control unit, left red obstacle avoidance expansion hole, the composition of the system is simple and nice!

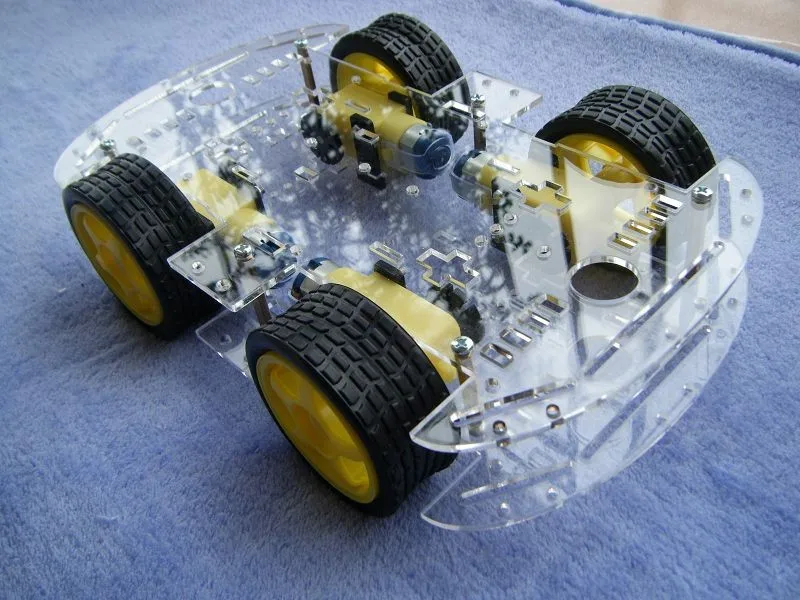

The bevel see the Arduino 4WD robot smart car chassis kits:




 Double-layer structure,to facilitate the expansion:




51 microcontroller system, L293D Four DC motor drive module, four tracking module in conjunction with the car chassis.(Able to achieve such tracing obstacle avoidance function).




The bevel see packed car chassis (rechargeable batteries are being put in mezzanine):




Four-way infrared probe installed in the car at the bottom, the distance very convenient adjustment. Can experiment different width black lines.

While adjusting the probe can experiment close obstacle avoidance capabilities




The L293D four with the drive module, DC head directly into the charger. No need to remove the battery (very convenient).




Leave the infrared the modulation photoelectric sensor mounting holes, can easily realize the obstacle avoidance function.




If you do not think the words of the two-tier structure: also choose a single-layer structure (contact the owner).

Arduino 4WD robot smart car chassis kits size:

  1. Trolley width of the distance to the outside of the two wheels 155MM
  2. The trolley length for 260MM

With tachometer code disk: can be used to go away if the measured speed feedback effects.




Arduino 4WD robot smart car chassis kits motor parameters:

Voltage

DC 3V

DC 5V

DC 6V

Current

100 MA

100MA

120MA

Reduction rate

48:1

RPM (With tire)

100

190

240

Tire Diameter

66mm

Car Speed(M/minute)

20

39

48

Motor Weight (g)

50

Motor Size

70mm*22mm*18mm

Noise

<65dB


 Note: motor power supply is 3V~6V. All the parameter above is tested without load


Arduino 4WD robot smart car chassis kits packing list(the same as the picture):

1x 4WD robot smart car chassis kits(The same as the picture)

4wd robot chassis kits
